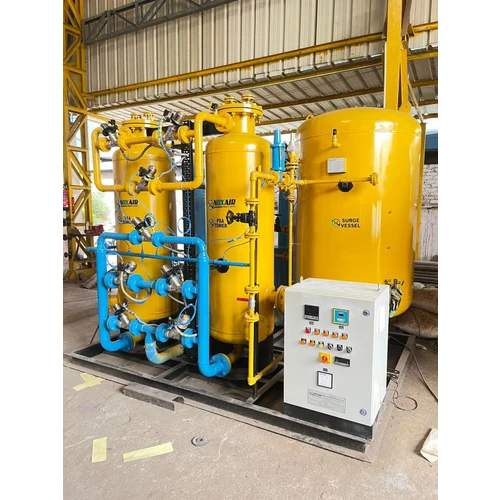

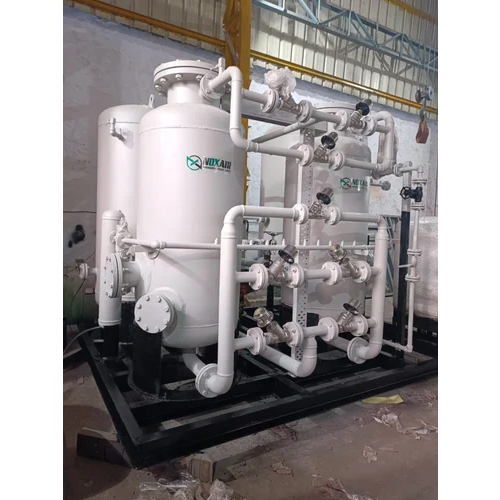

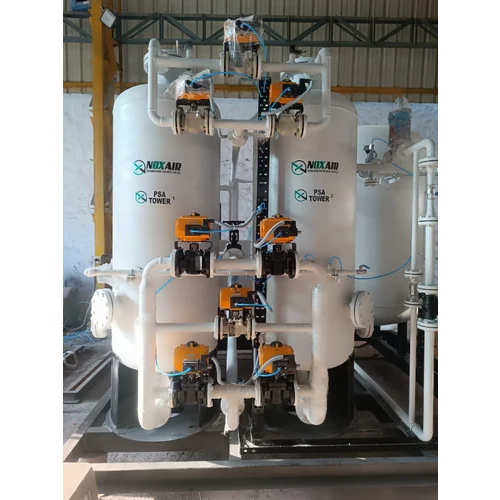

Nitrogen Gas Generators

Product Description

Nitrogen Gas Generators are systems designed to produce high-purity nitrogen gas from various sources, most commonly from compressed air. It offers the convenience of producing nitrogen gas on-site, eliminating the need for cylinder deliveries or liquid nitrogen storage. These generators utilize different technologies to separate nitrogen from other components of air, such as oxygen and trace gases, to provide a reliable and on-site source of nitrogen for industrial and commercial applications. Nitrogen Gas Generators find applications in a wide range of industries, including food and beverage packaging, electronics manufacturing, chemical processing, pharmaceuticals, metalworking, laser cutting, and more.

Product details

• Gas Type  : Nitrogen
• Capacity  : Up to 1500 Nm3/hr
• Brand/Make  : Noxair
• Type of Plant  : Generator
• Automation Grade  : Automatic
• Nitrogen Outlet Pressure  : 5 -7 Kg/cm2g
• Size  : As Per Design
• Display Mode  : HMI
• Moisture Content  : Less than 0.0001 PPM
• Purity  : Up to 99.9999%
• Dew Point  : -40 to -90 Degree Celsius
• Operating Temp  : Ambient
• Sound Level  : Up to 75 db
• Maximum Flow  : 1500 Nm3/hr
• Power  : 0.3 KW / Nm3 Nitrogen
• Pressure Range  : Up to 300 Barg
• Model Name/Number  : Noxair
• Design Type  : Customised
• Air Compressor (kW)  : 7.5 kW
• Application  : Industrial
• Approval & Licenses  : ISO,CE
• Brand  : Noxair
• Compressor Brand  : As per Customer Requirement
• Country Origin  : Made In India
• Design  : Customized
• Filtration Stages  : 4 - Stage
• Flow Rate(LPM)/(Nm3/hr)  : Up to 1500 Nm3/hr
• Mounting  : Vertical
• No. of Air Receiver  : 01
• No. of Storage Tank / Buffer Tank  : 01
• Operating Pressure  : 7- 8.5 Kg/cm2g
• Operating Temperature (degree celsius)  : 5 to 40 Degree Celsius
• Outlet/Discharge Pressure  : 5 Bar (g)
• Purity Of Nitrogen  : 97+-3%
• Purity Of Oxygen  : 97+-3%
• Technology Used  : PSA (Pressure Swing Adsorption)
• Type of Compressor  : Screw Air Compressor
• Type of Dryer  : Refrigerated Type Air Dryer
